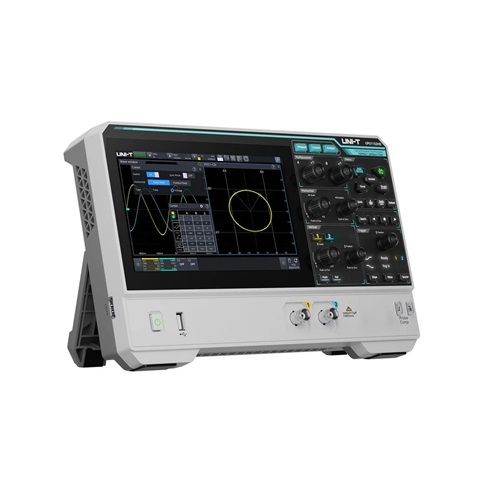

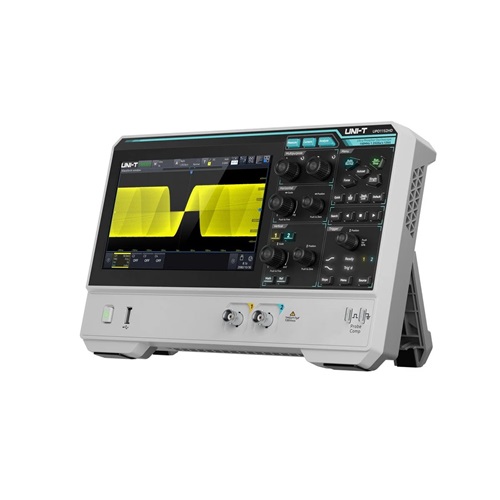

UNI-T UPO1082HD High-resolution Oscilloscope 80MHz 2Ch

The UNI-T UPO1082HD is a compact, high-resolution oscilloscope offering 80 MHz bandwidth and 12-bit ADC precision. Designed for professionals and educators, it features 100 Mpts memory depth, 1.25 GSa/s sample rate, and a 7-inch capacitive touchscreen with gesture support. Engineers can visualize waveform subtleties with Ultra Phosphor 3.0's 256-level intensity grading and capture rate up to 1M wfms/s. Six integrated instruments, protocol decoding, power analysis, and advanced triggering tools make this scope a flexible solution for embedded, analog, and power electronics.

Key Features

12-bit High Resolution – Offers 4096 quantization levels for enhanced signal detail
80 MHz Bandwidth – Optimized for power validation, analog sensor signals, and embedded systems
1.25 GSa/s Sample Rate – Clean signal capture of rapid transitions and glitches
2 Analog Channels – Streamlined setup for common test scenarios
Ultra Phosphor 3.0 – 100,000 wfms/s standard, 1,000,000 wfms/s in sequence mode with 256-color intensity display
6-in-1 Instrument Integration – Includes oscilloscope, DVM, spectrum analyzer, frequency counter, protocol analyzer, and power analyzer
Protocol Decoding Built-In – UART, I²C, SPI, CAN, LIN with time-correlated waveform display
100 Mpts Memory Depth – Allows long-duration captures with high fidelity
Advanced FFT – 1M-point FFT with 4 traces, peak/marker tools, waterfall view
Power Analysis Tools – Ripple, startup time, Rds(on), SOA, switching loss, and harmonics
Type-C PD Power Input – Power from wall or portable charger
SCPI & LAN/Web Control – Automate test routines or access remotely via browser

Package Contents

UPO1082HD Oscilloscope

2 × UT-P05 Passive Probes (200 MHz)

USB 2.0 Cable (UT-D14)

Type-C PD Power Adapter

User Manual & Calibration Certificate

Technical Documents - 1

Rs. 60,000.00 /each Save Rs. 6000 (10% Off)

Rs. 54,000.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
In-house Service center
Total Brand Orders	2198

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

1 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Model Number UPO1082HD

Scope Type DSO

Bandwidth 80MHz

Channels 2Ch

Scope Sample Rate 1.25GSa/s

Memory Depth 100Mpts

Refresh Rate 1,000,000wfms/s

Vertical Scale @1MΩ 500μV/div to 10V/div

# Automatic Measurements 56

Protocol Decoding Built-In – UART, I²C, SPI, CAN, LIN with time-correlated waveform display

Frequency Meter 6-bit

Display Size (in) 7in

Touchscreen Yes

Certifications CE/cETLus

Documents English download guide, multi-language safety manual, calibration report (COC)

Included Accessories Oscilloscope probe (UT-P04)*2

Standard Accessories Power cord, USB2.0 printing cable

Warranty: 3 Years

Uses

It can be widely used in communication, semiconductor, computer, integrated circuit design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, research and development/education and many other fields.
