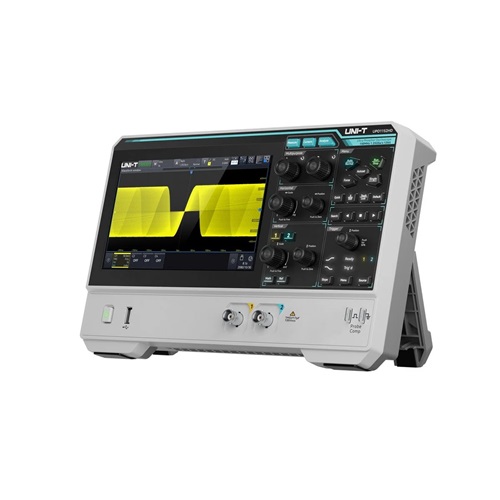

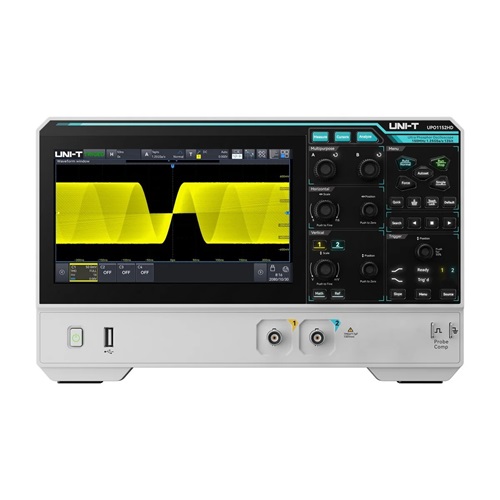

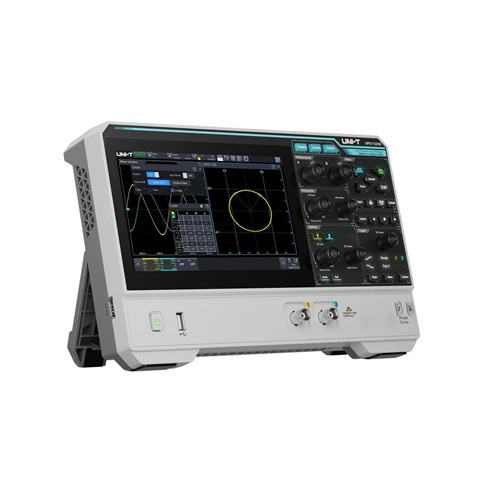

UNI-T UPO1152HD High-resolution Oscilloscope 150MHz 2Ch

The UNI-T UPO1152HD is a 12-bit high-resolution oscilloscope designed for engineers who need greater bandwidth for precision signal analysis. With 150 MHz bandwidth, 1.25 GSa/s sample rate, and 100 Mpts memory depth, it offers clean acquisition and deep capture. This 2-channel model integrates power analysis, protocol decoding, and advanced spectrum tools—all powered by UNI-T’s Ultra Phosphor 3.0 engine and delivered in a compact USB-C form factor with a 7" touchscreen.

Key Features

150 MHz Bandwidth – Ideal for high-speed embedded, analog, and power validation
2 Analog Channels – Streamlined form factor with dual-channel precision
12-bit Vertical Resolution – Capture subtle detail with 16× the resolution of 8-bit scopes
1.25 GSa/s Sample Rate – Supports accurate measurement of fast edges and clocks
100 Mpts Memory Depth – Long waveform capture at full speed and resolution
Ultra Phosphor 3.0 – Up to 1,000,000 wfms/s with 256-color intensity grading
Integrated Power Analysis – Built-in ripple, harmonics, SOA, switching loss, and more
1M-point FFT – Full-spectrum view with waterfall and peak markers
Protocol Decoding – UART, I²C, SPI, CAN, LIN with trigger and event view
6-in-1 Functionality – Oscilloscope, spectrum analyzer, DVM, counter, logic/protocol tools
USB-C PD Input – Compatible with portable and benchtop power setups
Remote Access – Control via SCPI, browser, or automated scripts

Package Contents

UPO1152HD Oscilloscope

2 × UT-P05 Passive Probes (200 MHz)

USB 2.0 Cable (UT-D14)

Type-C PD Power Adapter

User Manual & Calibration Certificate

Technical Documents - 1

Rs. 60,000.00 /each Save Rs. 2500 (5% Off)

Rs. 57,500.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
In-house Service center
Total Brand Orders	2198

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

1 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Model Number UPO1152HD

Scope Type DSO

Bandwidth 150MHz

Channels 2Ch

Scope Sample Rate 1.25GSa/s

Memory Depth 100Mpts

Refresh Rate 1,000,000wfms/s

Vertical Scale @1MΩ 500μV/div to 10V/div

# Automatic Measurements 56

Supports 5 types of mainstream protocols, including: Embedded: UART, I2C, SPI. Automobile: CAN, LIN

Frequency Meter 6-bit

Display Size (in) 7in

Touchscreen Yes

Certifications CE/cETLus

Documents English download guide, multi-language safety manual, calibration report (COC)

Included Accessories Oscilloscope probe (UT-P05)*2

Standard Accessories Power cord, USB2.0 printing cable

Warranty: 3 Years

Uses

It can be widely used in communication, semiconductor, computer, integrated circuit design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, research and development/education and many other fields.
