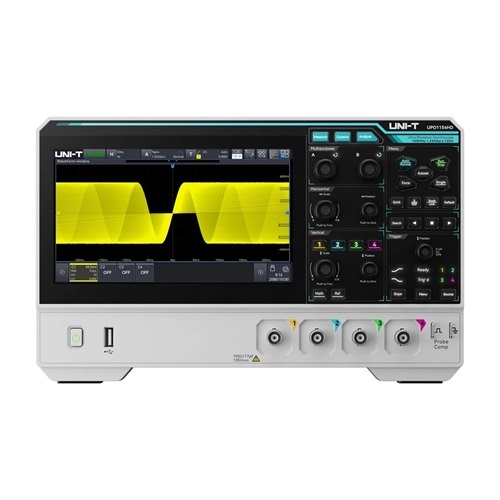

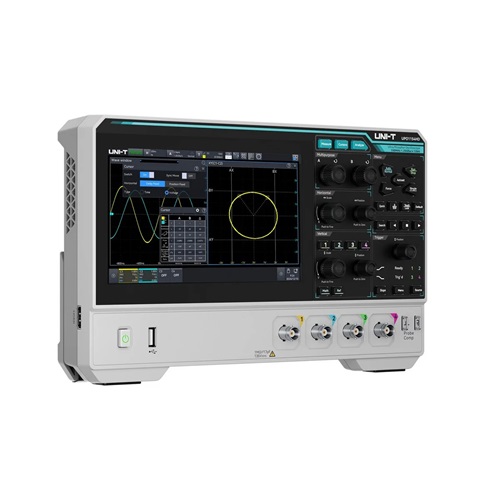

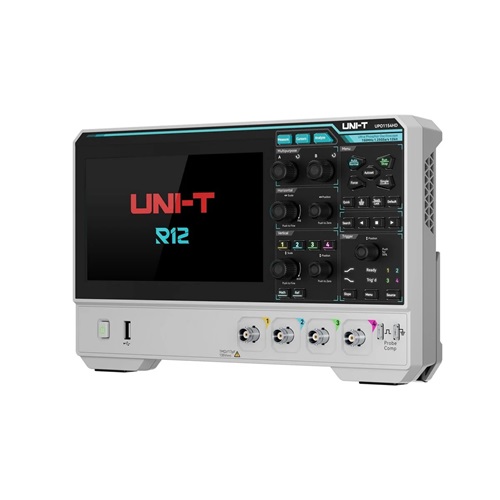

UNI-T UPO1154HD High-resolution Oscilloscope 150MHz 4Ch

The UNI-T UPO1154HD is the flagship model of the UPO1000HD Series, offering 150 MHz bandwidth across four analog channels with 12-bit vertical resolution and deep 100 Mpts memory. Whether you're debugging multi-rail power systems, correlating sensor outputs, or capturing high-speed digital transitions, the UPO1154HD delivers unmatched clarity and confidence. With Ultra Phosphor 3.0 technology, built-in power analysis, protocol decoding, and a responsive 7" touchscreen, this oscilloscope is a complete signal analysis platform in a compact USB-C powered form factor.

Key Features

150 MHz Bandwidth – Capture fast signals and high-speed switching with precision
4 Analog Channels – Simultaneous acquisition across complex designs or multi-rail power systems
12-bit Vertical Resolution – Delivers 16× more detail than standard 8-bit scopes
1.25 GSa/s Sample Rate – High-speed sampling across all channels
100 Mpts Memory Depth – Capture long events and zoom in with full fidelity
Ultra Phosphor 3.0 – 256-color grading with up to 1,000,000 wfms/s waveform capture rate
Power Analysis Suite – Built-in tools for ripple, SOA, startup, harmonics, and switching loss
1M-point FFT – Visualize EMI, clock harmonics, and noise spectra with waterfall mode
Protocol Decoding – Decode UART, I²C, SPI, CAN, and LIN with time correlation
6-in-1 Integration – Oscilloscope, DVM, frequency counter, spectrum & protocol analyzers, and power suite
USB-C PD Input – Flexible power delivery from benchtop or battery
LAN, USB & HDMI – Built-in SCPI automation, web control, and external display support

Package Contents

UPO1154HD Oscilloscope

4 × UT-P05 Passive Probes (200 MHz)

USB 2.0 Cable (UT-D14)

Type-C PD Power Adapter

User Manual & Calibration Certificate

Technical Documents - 1

Rs. 70,000.00 /each Save Rs. 5500 (8% Off)

Rs. 64,500.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
In-house Service center
Total Brand Orders	2198

Dispatched (in Days): Sa

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

6 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Model Number UPO1154HD

Scope Type DSO

Bandwidth 150MHz

Channels 4Ch

Scope Sample Rate 1.25GSa/s

Memory Depth 100Mpts

Refresh Rate 1,000,000wfms/s

Vertical Scale @1MΩ 500μV/div to 10V/div

# Automatic Measurements 56

Included Bus Protocols RS232 UART I2C SPI RS422 RS485 CAN LIN CAN-FD Audio

Optional Bus Protocols None

Logic Pod Included Not Available

Signal Generator Function Not Available

Frequency Meter 6-bit

Display Size (in) 7in

Touchscreen Yes

Certifications CE/cETLus

Documents English download guide, multi-language safety manual, calibration report (COC)

Included Accessories Oscilloscope probe (UT-P05)*4

Standard Accessories Power cord, USB2.0 printing cable

Warranty: 3 Years

Uses

It can be widely used in communication, semiconductor, computer, integrated circuit design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, research and development/education and many other fields.
