UNI-T Authorized brand

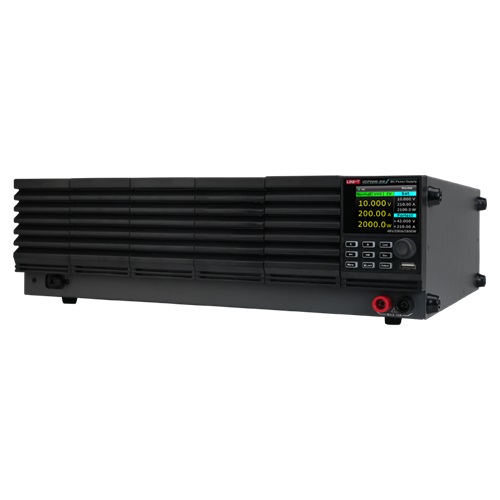

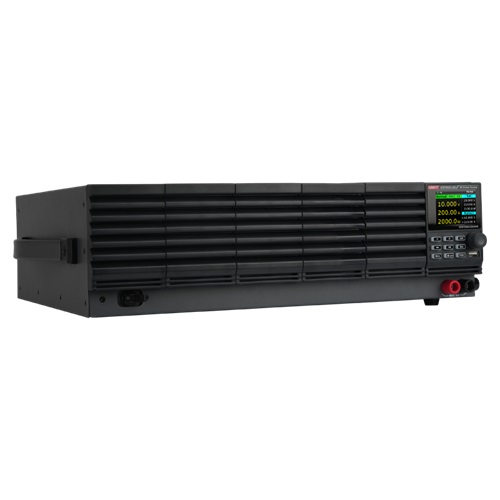

UNI-T UDP5250-30 Power Supply- 2000W, Channel 1, 250V, 30A

SKU: UDP5250
In Stock (1 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

UDP5000 series power supplies feature a compact design, high performance, versatile functionality, a wide output range, user-friendly operation, and flexible usage. The series includes four rated output voltages (40 V, 80 V, 160 V, 250 V) and four rated output power levels (400 W, 800 W, 1200 W, 2000 W), forming a total of 16 models

  • TOTAL POWER 2000W
  • OUTPUT VOLTAGE 0-250V
  • OUTPUT CURRENT 0-30A
  • Channel 1
  • Series/Parallel Operation- Supports 2 units in series and 4 units in parallel
  • Wide Range Output- Power ratio up to 4.0
  • Adjustable Internal Resistance- Adjustable range: 0 to 31.25 Ω
  • List And Delayer- Can measure external voltage, flexible application



Product information

Everything you need to know

Technical Specifications

MODEL UDP5250-30

TYPE Switching

CHANNELS 1

TOTAL POWER 2000W

OUTPUT VOLTAGE 0-250V

OUTPUT CURRENT 0-30A

RESOLUTION 1 mV,1 mA

SETTING ACCURACY  V:0.05%+0.05%FS I:0.5%+0.1%FS

CONNECTIVITY  USB Host, USB Device, LAN

Warranty
As per Brand policy

Application

Industrial uses
