Hantek Authorized brand

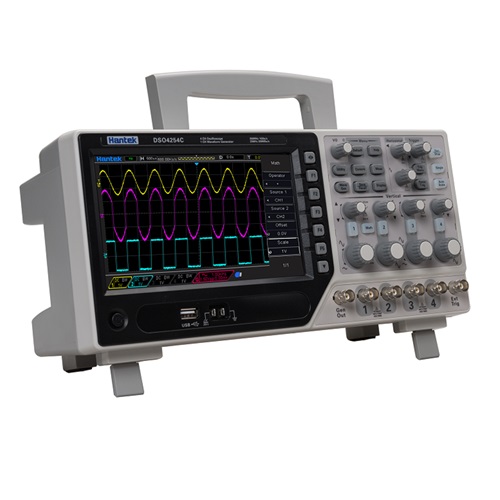

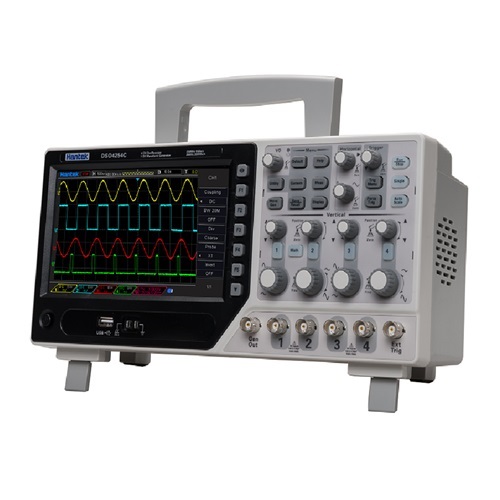

Hantek DSO4254C Digital Storage Oscilloscope-4 Channel, 250MHz Bandwidth

SKU: 4254CD
Rs. 47,500.00 MRP Rs. 53,350.00 Save Rs. 5,850.00 (11% off) Inclusive of GST-18%
In Stock (2 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

Feature：

  • 4CH oscilloscope+EXT+AFG+DVM+auto range function
  • 250MHz bandwidth，
  • Minimum range 500μV /div，
  • 1GS/s sample rate.
  • Over 32 types of auto measurement function Advanced digital trigger system, high trigger sensitivity. Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc. Serial bus triggering and decode,  Bus protocol information can be quickly and intuitively displayed in table form.
  • Function/arbitrary signal generator25MHz,12BitS resolution, 200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc., easy to simulate the sensor. Integrated USB Host/Device, convenient to communicate with PC. Support U-stick storage/systerm update. Support a variety of SCPI remote control command Support optional RS232 port, LAN port. (Optional)Stable and reliable quality, sturdy and durable.



Product information

Everything you need to know

Technical Specifications

Type of oscilloscope digital

Kind of oscilloscope DSO

Number of channels 4

Bandwidth 250MHz

Sampling 1Gsps

Memory record length 64kpts/ch

Kind of display used colour, LCD TFT 7"

Time base 2n...1ks/div

Vertical resolution 8bit

Interface USB

Rise time 1.4ns

Additional functions arbitrary waveform generator

Warranty
1 Year

Application

Embedded System Design & Microcontroller Debugging
High-Speed Analog and Digital Circuit Testing
Academic Labs & Engineering Education
