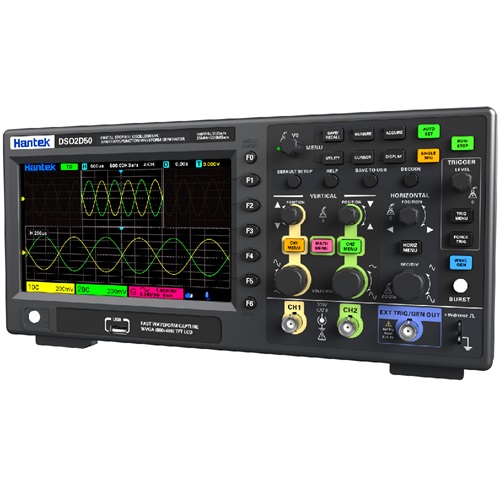

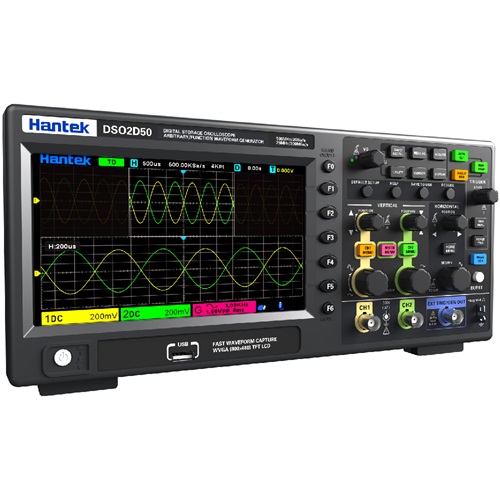

Hantek DSO2D50 Digital Storage Oscilloscopes 500MHz Bandwidth 2CH Dual Channel

SKU: DS2D50 5.0 (2 Reviews)
Rs. 41,500.00 MRP Rs. 59,400.00 Save Rs. 17,900.00 (31% off) Inclusive of GST-18%
In Stock (1 available) Dispatch lead time: Same Day Dispatch MOQ 1 piece Technical datasheet (PDF)
Quantity to add

Feature:

  • Support 1MΩ/50Ω impedance switching to ensure signal integrity;
  • The sampling rate of the entire system is 2GSa/s,
  • Bandwidth         500MHz
  • Channel: 2
  • Built in arbitrary waveform generator, capable of outputting 5 standard waveforms, supports custom arbitrary waveform output, and supports burst output;
  • Protocol Trigger: Comes with five standard serial protocol triggers and decoding, supporting protocols including UART, LIN, CAN, SPI, IIC, making it easy to analyze serial bus data;
  • 32 automatic measurement and threshold measurement functions, with test results supporting statistical analysis;
  • Two sets of digital voltmeter functions and hardware frequency meter functions;
  • Standard SCPI remote control instructions, convenient for users to build testing systems;
  • Save and export function, which can save settings CSV, Information such as images, reference waveforms, and waveforms;
  • Four sampling methods: normal, average, peak, and high-precision;
  • 14 operating languages, supporting over 90% of countries and regions worldwide;
  • There are two cursor measurement modes: manual and tracking, and the Math function also supports cursor measurement;
  • 500uV-10V vertical measurement gear, 300VCAT Ⅱ withstand voltage input;
  • FFT scale display, convenient for reading results;
  • Manual, single time, one click AUTO measurement, simple and fast waveform measurement;
  • XY mode supports dual window display, making it easy to understand waveform phase changes;

Package:

  • 1 x Oscilloscope;
  • 1 x oscilloscope probe;
  • 1 x power cable;
  • 1 x USB cable;



Product information

Everything you need to know

Reviews (2)

Technical Specifications

Model DSO2D50

Analog Bandwidth         500MHz

Rising Time (typical)            ≤700ps

No. of Input/Output Channels  2 analog channel inputs; 1 signal generator channel output (DSO2D20 series)

EXT Channel Input         1 EXT channel input

Waveform Generator

Sampling Mode               Real-time sampling

Max. Sample Rate of Analog Channel  2GSa/s (single-channel)，1GSa/s (all channels)

Max. Memory Depth      80Kpts (single-channel)，40Kpts (all channels)

Peak Detection Under all the time base settings, capture 1ns glitches

LCD Size and Type         7-inch

Display Resolution        800 × 480

Vertical System Analog Channel

Input Coupling DC, AC, GND

Input Impedance            1MΩ±1%，50Ω±1%

Input Capacitance        17pF±3pF

Dynamic Range               ±5div ( 8bit )

DC Gain Accuracy         ±3%FullScale

DC Offset Accuracy      <200mV/div (±0.1div±2mV±1.5%of offset value)

>200mV/div (±0.1div±2mV±1.0%of offset value)

Channel-to-Channel Isolation 40dB,  from DC to maximum rated bandwidth of each model

Warranty
1 Year

Application

Industrial uses
Real feedback from verified buyers

Customer reviews

5.0 2 reviews
Priya Nair Verified purchase
5.0

Simple to use, worth it

Using it in our college lab. Easy to learn, clear display, and the 1-year warranty gives peace of mind.

Rahul Sharma Verified purchase
5.0

Great value, genuine product

Bought this for my repair shop in Pune and got it at a good discount from ToolWorld. The 7-inch screen is big and clear, and the auto button makes setup really quick. The built-in signal generator saves me from buying a separate one. Arrived in 4 days with a proper GST invoice. Very happy!
