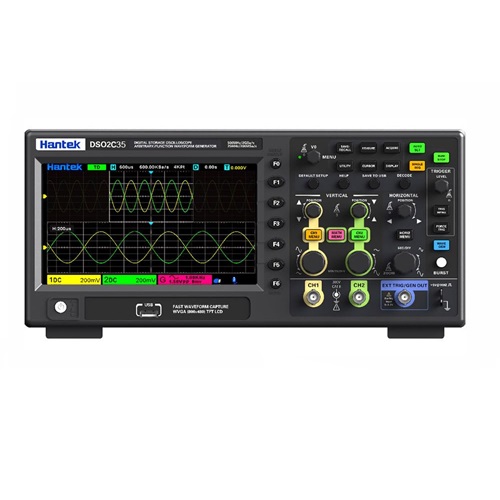

Model DSO2C35
Analog Bandwidth 350MHz
Rising Time (typical) ≤1ns
No. of Input/Output Channels 2 analog channel inputs; 1 signal generator channel output (DSO2D20 series)
EXT Channel Input 1 EXT channel input
Waveform Generator ╳
Sampling Mode Real-time sampling
Max. Sample Rate of Analog Channel 2GSa/s (single-channel)，1GSa/s (all channels)
Max. Memory Depth 80Kpts (single-channel)，40Kpts (all channels)
Peak Detection Under all the time base settings, capture 1ns glitches
LCD Size and Type 7-inch capacitive multi-touch screen
Display Resolution 800 × 480
Vertical System Analog Channel
Input Coupling DC, AC, GND
Input Impedance 1MΩ±1%，50Ω±1%
Input Capacitance 17pF±3pF
Dynamic Range ±5div ( 8bit )
Bandwidth Limit (Typical) 20MHz,100MHz,200MHz,350MHz; selectable for each channel
DC Gain Accuracy ±3%FullScale
DC Offset Accuracy <200mV/div (±0.1div±2mV±1.5%of offset value)
>200mV/div (±0.1div±2mV±1.0%of offset value)
Channel-to-Channel Isolation 40dB, from DC to maximum rated bandwidth of each model
Warranty:
1 Year
It is a useful commissioning instrument for various fields such as communication, aerospace, national defence, embedded systems, computers, research and education
