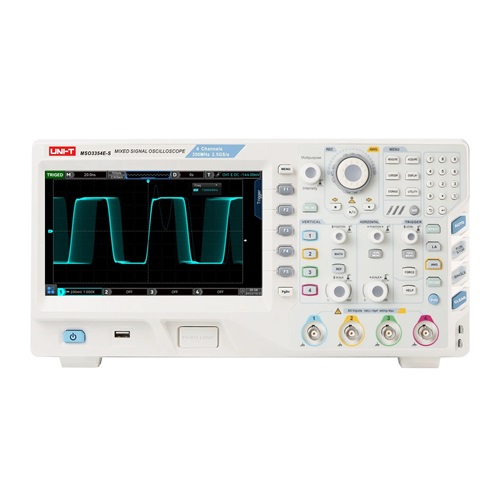

Model Number MSO3354E-S
Scope Type MSO
Bandwidth 350MHz
Channels 4Ch
Scope Sample Rate 2.5GSa/s
Memory Depth 250Mpts
Refresh Rate 200,000wfms/s
Vertical Scale @1MΩ 1mV/div to 10V/div
# Automatic Measurements 36
Included Bus Protocols None
Optional Bus Protocols RS232 UART I2C SPI CAN CAN-FD LIN FlexRay
Logic Pod Included Included
Signal Generator Function Included
Frequency Meter 7-bit
Display Size (in) 8in
Touchscreen Yes
Product Dimensions (L x W x H) 15 in x 5 in x 7 in
Product Weight 10 lb
Certifications CE/cETLus/UKCA
Documents English download guide, multi-language safety manual, calibration report (COC)
Included Accessories Oscilloscope probe (UT-P08A) *4, logic probe (UT-M15), BNC straight-through cable, BNC to alligator clip cable
Standard Accessories Power cord, USB2.0 printing cable
Warranty:
As per Brand policy
