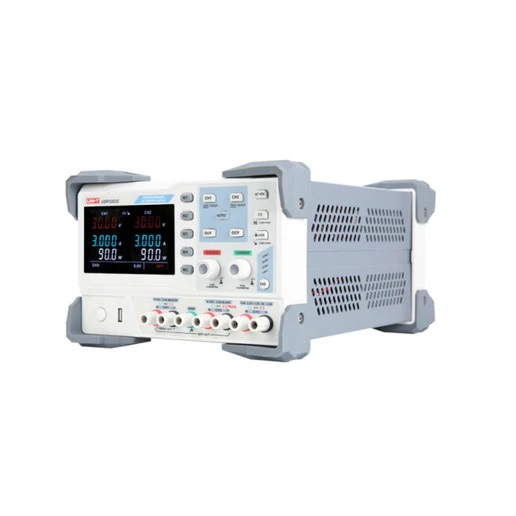

UNI-T UDP3303C DC Power Supply

The UDP3000 Series Programmable DC power supply is a cost-effective programable DC power supply with outstanding performance, reliable output and clear interface. The UDP3303C/A DC power supply has three independent outputs: two of them are adjustable outputs of 30V/3A, the other one is a fixed selectable output of 1.8V/2.5V/3.3V/5V/3A (fine adjustable). With the constant voltage (CV) and constant current (CC) modes, short circuit and overvoltage protection features, the instrument can perfectly meet various test requirements.

Type Linear
Power 315W
Current 5A
Channels 3
Output Voltage 30V

Technical Documents - 1

Add to Quotations

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

Technical Specifications

Model Number UDP3303C

Channels 3Ch

Output Voltage 30V

Output Current 3A

Total Power 195W

Max V Resolution 10mV

Max A Resolution 1mA

Connectivity RS-232, USB

Setting Accuracy

Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA

Shipping Dimensions (W×H×D) 445×365×300(mm)

Shipping Weight 10.2Kg

Included Accessories Power cord, USB2.0 printing cable, Aligator Clip Test Line, RS232 Communication lines

Warranty: As per Brand policy

Uses

Industrial uses

Technical Specifications
Uses

Model Number UDP3303C

Channels 3Ch

Output Voltage 30V

Output Current 3A

Total Power 195W

Max V Resolution 10mV

Max A Resolution 1mA

Connectivity RS-232, USB

Setting Accuracy

Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA

Shipping Dimensions (W×H×D) 445×365×300(mm)

Shipping Weight 10.2Kg

Included Accessories Power cord, USB2.0 printing cable, Aligator Clip Test Line, RS232 Communication lines

Warranty: As per Brand policy

Industrial uses
