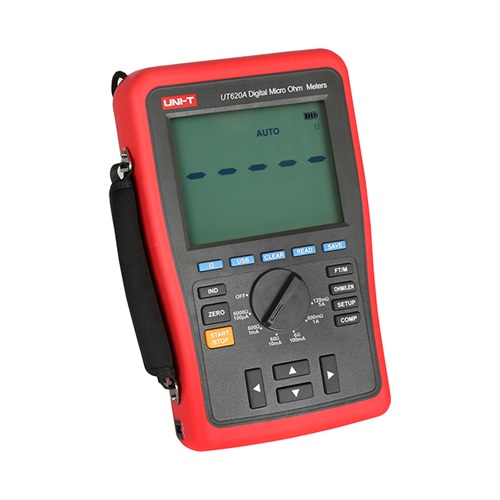

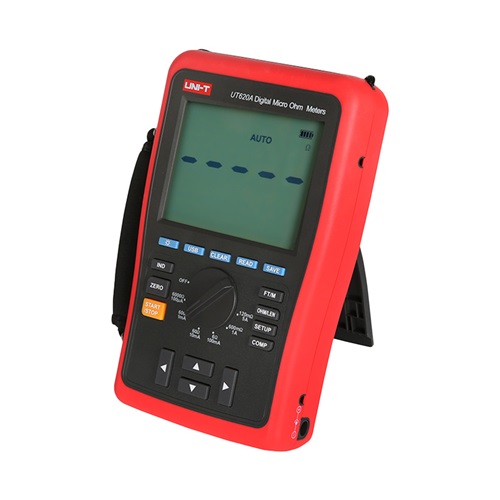

UT620A is used to measure DC low resistance through 4-wire method. Its features are: Comparison function to determine if the device is in good condition, unkown wire length calculation (FT/M); two-way data transmission by USB interface. UT620A can be used in narrow space for on-site troubleshooting, such as metal coating resistance, motor and small transformer winding resistance, welding points, power distribution cabinet bus, lead connection inspections, and more.
Features:
Quantity
Dispatched (in Days): Same Day Dispatch
Minimum Order Quantity: 1 pcs
Country of Origin: N/A
Specifications Range UT620A
Resolution 10uΩ
Resistance (Ω) 60mΩ/10A
120mΩ/5A ±(0.25%+25)
600mΩ/1A ±(0.25%+25)
6Ω/100mA ±(0.25%+25)
60Ω/10mA ±(0.25%+25)
600Ω/1mA ±(0.25%+25)
6kΩ/100uA ±(0.75%+30)
Features
Display count 60000
Four-wire measurement √
Wire length measurement √
High/low limit alarm √
Data storage 1000
USB data transmission √
Manual range √
Backlight √
Relative value √
Low battery indication √
Warranty: As per Brand policy
Industrial uses
