UNI-T Authorized brand

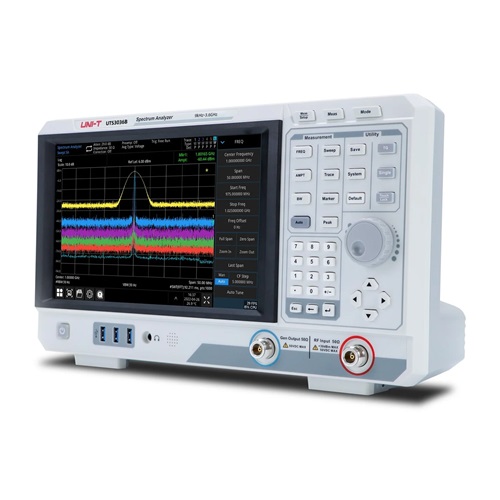

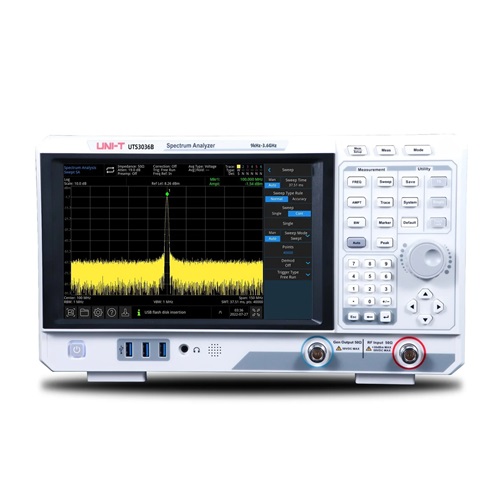

UNI-T UTS3036B Spectrum Analyzer- 3.6Ghz

SKU: UTS306B
Rs. 269,500.00 MRP Rs. 313,500.00 Save Rs. 44,000.00 (15% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

The UTS3000B series spectrum analyser can measure frequencies up to 8.4GHz. It is a spectrum analyzer with wide frequency band coverage and superior performance. The series adopts mature all digital IF technology. It provides a variety of analysis functions, and up to 40001 scanning points, providing better help for your frequency domain analysis. This series of spectrum adopts a 10.1 inch large touch screen, which will bring you a better use experience. The UTS3000B series can be applied to functional/terminal/quality inspection tests in the electronics manufacturing industry, as well as wireless communication measurement, RF microwave courses, electromagnetic compatibility pre-scan, semiconductor measurement and many other application scenarios.

  • Frequency Range 9kHz–3.6GHz
  • Phase Noise -98 dBc/Hz @10kHz
  • Sweep Points 40,001
  • DANL -161dBm/Hz
  • RBW 1Hz-3MHz

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report

Product information

Everything you need to know

Technical Specifications

Model Number UTS3036B

Frequency Range           9kHz–3.6GHz

RBW      1Hz-3MHz

DANL    -161dBm/Hz

Traces  6

Scan Points       40,001

Tracking Generator       Optional

Display Size (in)               10.1in

Touchscreen     Yes

Product Dimensions (L x W x H)               15 in x 9 in x 5 in

Product Weight               10 lb

Certifications   CE/cETLus/UKCA

Documents       English download guide, multi-language safety manual, calibration report (COC)

Standard Accessories Power cord, USB2.0 printing cable

Warranty
3 Year

Application

UTS3000B series can be applied to functional/terminal/quality inspection tests in the electronics manufacturing industry, as well as wireless communication measurement, RF microwave courses, electromagnetic compatibility pre-scan, semiconductor measurement and many other application scenarios.
