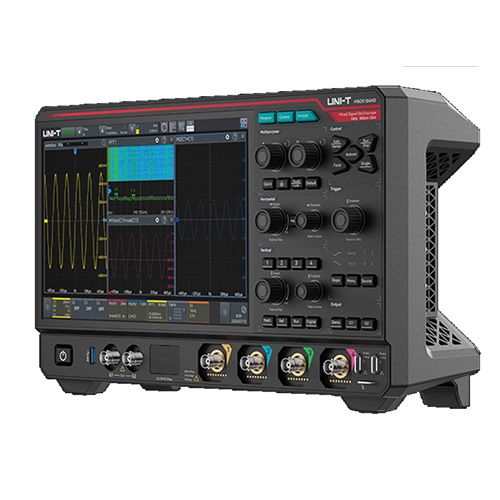

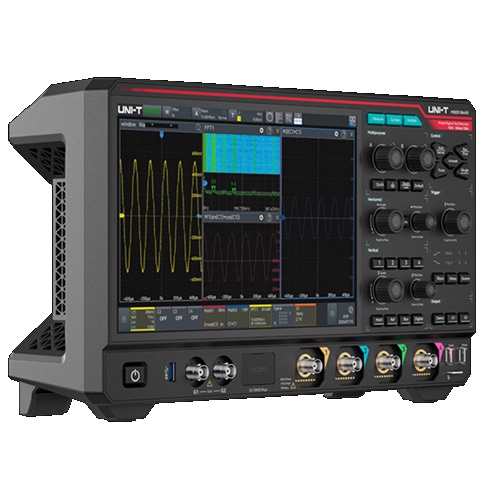

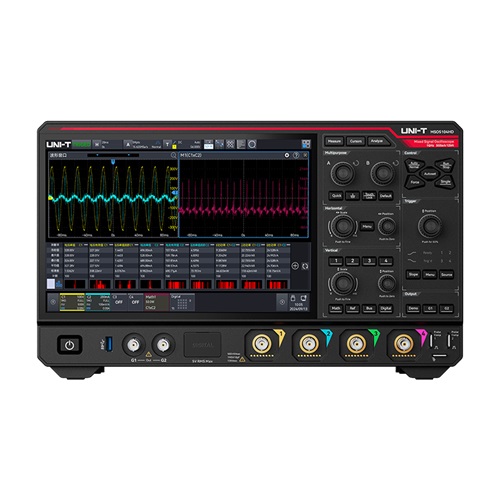

UNI-T MSO5104HD 12Bit Digital Oscilloscope- 1 Ghz 4 Channel

SKU: 5104HD
In Stock (2 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

The UNI-T MSO5104HD high-resolution mixed signal oscilloscope delivers exceptional measurement precision and versatility for professionals requiring advanced signal analysis capabilities. Featuring a powerful 1GHz bandwidth, 5GSa/s real-time sampling rate, and industry-leading 12-bit vertical resolution, this instrument provides the clarity and detail needed for today's complex electronic designs. With the innovative Ultra Phosphor 3.0 technology achieving an impressive 1,500,000 wfms/s capture rate and 256 levels of color temperature display, the MSO5104HD excels at capturing elusive signal anomalies that other oscilloscopes might miss.

  • Professional-Grade 12-bit Resolution - 16x higher quantization levels than traditional 8-bit oscilloscopes for superior waveform detail
  • High-Performance Acquisition - 1GHz bandwidth, 5GSa/s real-time sampling, and 500 Mpts deep memory
  • Ultra Phosphor 3.0 Technology - Exceptional waveform capture rate of 1,500,000 wfms/s with 256 color gradations
  • Mixed Signal Analysis - 4 analog channels plus 16 digital channels for comprehensive system debugging
  • Nine-in-One Instrument Integration - Complete test solution including oscilloscope, logic analyzer, spectrum analyzer, and more
  • Integrated Signal Generator - Built-in 50MHz dual-channel function/arbitrary waveform generator
  • Comprehensive Bus Analysis - Extensive protocol triggering and decoding options for computer, automotive, and aerospace applications
  • Advanced Triggering - Zone trigger capabilities for isolating difficult-to-capture signals
  • Multifaceted Measurements - 54 automatic parameter measurements with statistical analysis
  • Responsive Touch Interface - 10.1-inch HD capacitive touch screen with intuitive gesture controls
  • Extensive Connectivity - USB, LAN, HDMI, and WiFi interfaces for flexible test environment integration
  • Enhanced FFT Analysis - Up to 4M point FFT for detailed frequency domain analysis



Product information

Everything you need to know

Technical Specifications

Model Number MSO5104HD

Scope Type        MSO

Bandwidth         1GHz

Channels            4Ch

Scope Sample Rate      5.0GSa/s

Memory Depth 500Mpts

Refresh Rate     1,500,000wfms/s

Vertical Scale @1MΩ   500μV/div to 10V/div

Automatic Measurements        56

Included Bus Protocols               RS232 UART I2C SPI CAN LIN

Optional Bus Protocols               CAN-FD FlexRay SENT Audio MIL-STD-1553B ARNIC429 Manchester 1-WIRE CAN-XL I3C

Logic Pod Included        Optional

Signal Generator Function        Optional

Frequency Meter            7-bit

Display Size (in)               10.1in

Touchscreen     Yes

Warranty            3 years

Certifications   CE/cETLus

Documents       English download guide, multi-language safety manual, calibration report (COC)

Included Accessories  Oscilloscope probe (UT-P07A)*4, BNC straight-through cable (UT-L45), BNC to alligator clip cable (UT-L02A)

Standard Accessories Power cord, USB3.0 printing cable

Warranty
3 Years

Application

Whether you're working in power electronics, semiconductor testing, or advanced R&D applications, the MSO5104HD provides the measurement accuracy, analysis capabilities, and intuitive operation needed to solve your most challenging signal integrity problems.
