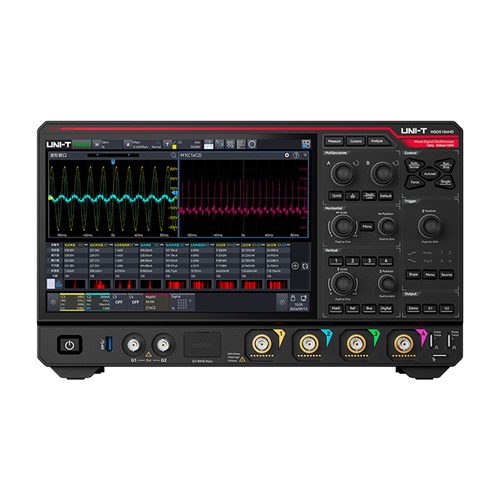

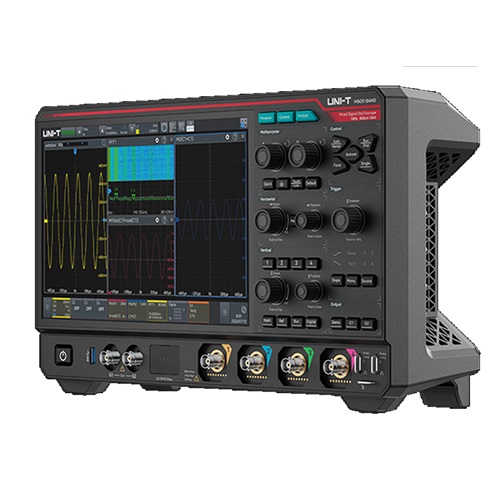

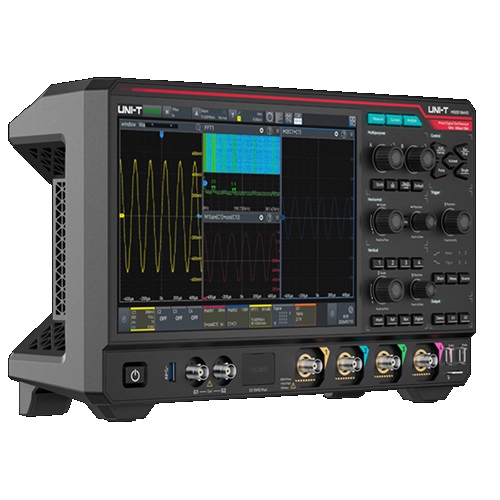

UNI-T MSO5054HD 12-Bit 500MHz 4Ch Mixed Signal Oscilloscope

SKU: 5054HD
In Stock (4 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

Introducing the UNI-T MSO5054HD – a state-of-the-art mixed signal oscilloscope designed to deliver exceptional measurement accuracy and operational versatility for today’s demanding test environments. With a 500MHz analog bandwidth, 5GSa/s real-time sampling rate, and premium 12-bit vertical resolution, this instrument is engineered to capture even the most subtle signal details.

Featuring advanced Ultra Phosphor 3.0 technology, the MSO5054HD provides brilliant color gradation and an industry-leading capture rate of up to 1,500,000 wfms/s. Ideal for professionals in research, development, and academia, its integrated multi-instrument functionality and intuitive 10.1-inch capacitive touch screen streamline your workflow, with an option to upgrade the bandwidth to 1GHz for future needs.

  • 12-bit Precision Technology – Delivers 4096 quantization levels for unmatched detail compared to standard 8-bit systems.
  • Robust Acquisition Performance – 500MHz bandwidth with 5GSa/s real-time sampling and up to 500 Mpts deep memory for extensive data capture.
  • Ultra Phosphor 3.0 Display – Enjoy superior color depth with 256 shades to visualize transient events clearly.
  • Versatile Mixed Signal Analysis – Combines 4 analog channels with 16 digital channels for complete system diagnostics.
  • Multi-Function Integration – Incorporates oscilloscope, logic analyzer, waveform generator, spectrum analyzer, and more in one compact solution.
  • Built-in Signal Generator – Integrated 50MHz dual-channel function/arbitrary waveform generator for comprehensive testing.
  • Advanced Protocol Triggering – Extensive support for serial bus protocols to diagnose communication issues in complex systems.
  • Comprehensive Measurement Suite – Automatically calculates 54 parameters and offers statistical analysis for deeper insight.
  • User-Friendly Touch Interface – 10.1-inch HD capacitive screen optimized for gesture control and ease of use.
  • Flexible Connectivity Options – Features USB, LAN, HDMI, and WiFi for seamless integration with your test setup.
  • Enhanced FFT Analysis – Perform detailed frequency analysis with up to 4M point FFT capabilities.



Product information

Everything you need to know

Technical Specifications

Model Number MSO5054HD

Scope Type        MSO

Bandwidth         500MHz

Channels            4Ch

Scope Sample Rate      5.0GSa/s

Memory Depth 500Mpts

Refresh Rate     1,500,000wfms/s

Vertical Scale @1MΩ   500μV/div to 10V/div

# Automatic Measurements     56

Included Bus Protocols               RS232 UART I2C SPI CAN LIN

Optional Bus Protocols               CAN-FD FlexRay SENT Audio MIL-STD-1553B ARNIC429 Manchester 1-WIRE CAN-XL I3C

Logic Pod Included        Optional

Signal Generator Function        Optional

Frequency Meter            7-bit

Display Size (in)               10.1in

Touchscreen     Yes

Warranty            3 years

Certifications   CE/cETLus

Documents       English download guide, multi-language safety manual, calibration report (COC)

Included Accessories  Oscilloscope probe (UT-P07A)*4, BNC straight-through cable (UT-L45), BNC to alligator clip cable (UT-L02A)

Standard Accessories Power cord, USB3.0 printing cable

Warranty
As per Brand policy

Application

Designed with both researchers and educators in mind, this oscilloscope offers intuitive controls and comprehensive features that simplify complex waveform analysis, making it an invaluable tool in academic laboratories.
