TWRobotics

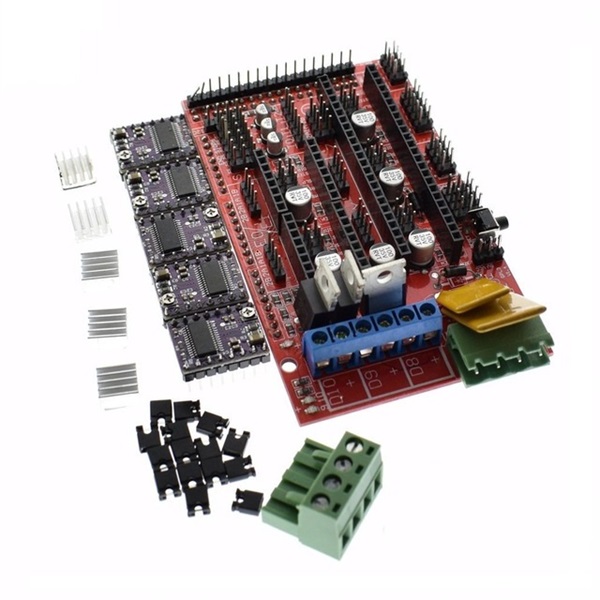

TWRobotics RAMPS 1.4 3D Printer Controller with DRV8825 Driver With Heat Sink Kit

SKU: RAMP14
Rs. 920.00 MRP Rs. 1,050.00 Save Rs. 130.00 (13% off) Inclusive of GST-18%
In Stock (100 available) Delivery 2-6 days MOQ 1 piece
Quantity to add

Features:

  • USB type B receptacle.
  • SD Card adds on available.
  • Fits 5 Pololu stepper driver board.
  • LEDs indicate when heater outputs on.
  • Expandable to control other accessories.
  • Heated bed control with an additional 11A fuse.
  • Option to connect 2 motors to Z for Prusa Mendel.
  • I2C and SPI pins left available for future expansion.
  • It has provisions for the cartesian robot and extruder.
  • All the Mosfets are hook into PWM pins for versatility.
  • 3 MOSFETs for heater/fan outputs and 3 thermistor circuits.
  • Fused at 5A for additional safety and component protection.
  • These boards are on pin header sockets so they can be replaced easily or remove for use in future designs.
  • Servo style connectors are used to connect to the end stops, motors, and led. These connectors are gold plated, rated for 3A, very compact, and globally available.



Product information

Everything you need to know

Technical Specifications

Item Type: Controller Kit

Driver   DRV 8825

Input Voltage (VAC) 12 to 36

Shipping Weight              0.2 kg

Shipping Dimensions   10 × 7 × 5 cm

Warranty
N/A

Application

Design to fit the entire electronics needed for a RepRap in one small package for a low cost.
