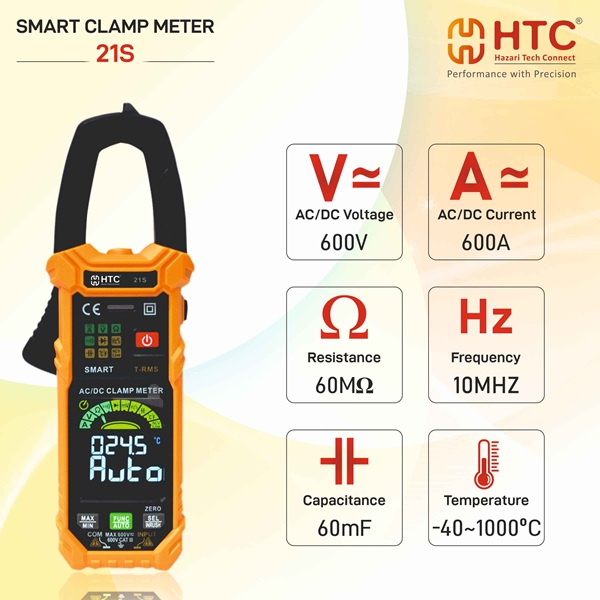

HTC Instruments 21S 600A AC/DC Smart Clamp Meter

SKU: CM209D

Rs. 3,615.00 MRP ~~Rs. 4,150.00~~ Save Rs. 535.00 (13% off) Inclusive of GST-18%

In Stock (91 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

Display LCD with Bargraph
Auto Power Off {APO 5 minutes)
Flash Light no operation sensing signal will shutdown
Signal Intensity Four Level
3¾ Digits
5,999 Counts
Colour Display
Data Hold
Min / Max
True Rms
Auto Power Off
Duty Cycle
Live Wire Detection

Product information

Everything you need to know

Technical Specifications

Specification Range Resolution Accuracy

DC Voltage 600mV/6V/60V/600V ±(0.5%+5)

AC Voltage 600mV/6V/60V/600V ±(0.8%+5)

DC Current 60A/600A ±(2.5%+5)

AC Current 60A/600A ±(2.5%+5)

Resistance 6000/6k0/60k0/600k0/6M0/60M O ±(1.0%+5)

Capacitance 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF ±(4.0%+5)

Frequency 1OOHz/1OOOHz/10kHz/1OOkHz1000kHz ±(1.0%+3)

Duty 1%-99% ±(3.0%+3)

Temperature -40°C-1000°C ±(1.0%+3)

Continuity 6000 .t

Counts 6000

Analog Bar .t

Data Hold .t

Max/Min .t

Backlight .t

Flashlight .t

DCA Zero .t

Smart or (Auto) .t

Low battery Indication .t

Auto Power Off .t

True RMS .t

Warranty

1 year

What's in the Box

Accessories Test leads, User Manual, TP04 Thermocouple Probe, Carry Case & Battery

Application

Electrical Industry, Industrial Maintenance, Residential Use, HVAC
