HTC Instruments TM-527 Tesla Meter

SKU: TM0527

Rs. 7,610.00 MRP ~~Rs. 9,755.00~~ Save Rs. 2,145.00 (22% off) Inclusive of GST-18%

Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

Features

4 Digit Display
Measures Magnetic Field Strength Of Magnetic Materials
Scope : Max Calibration Field 2400mt
Backlight Adjustable
Hall Probe Interface
Transverse Probe
Automatic Range
Measures In Mt / Gs
Max Value Retention
Strong Anti-Interference Ability
Automatic Shut Down
Light Weight

POWER: 9V (6F22) X 1

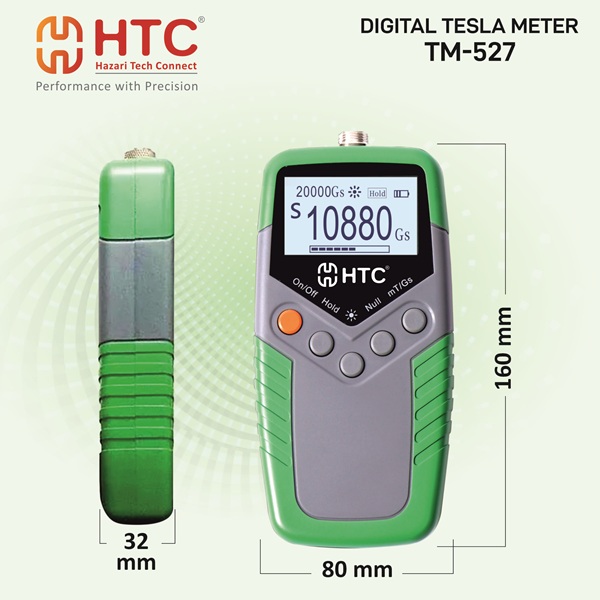

Dimension: 160 mm x 80 mm x 32 mm

Product information

Everything you need to know

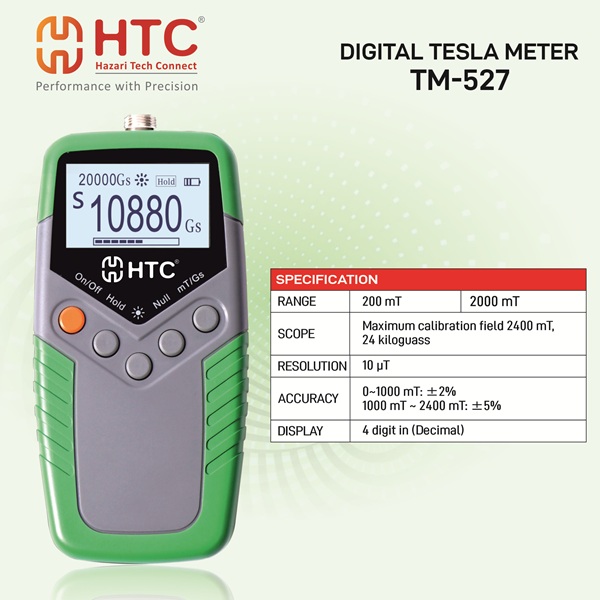

Technical Specifications

Range 200 mT 2000 mT

Scope Maximum calibration field 2400 mT, 24 kiloguass

Resolution 10 µT

Accuracy 0~1000 mT: ±2%

1000 mT ~ 2400 mT: ±5%

Display 1000 mT ~ 2400 mT: ±5%

Warranty

1 year

What's in the Box

Standard Accessories Meter, Transverse probe with 1m cable, User Manual & Battery

Application

Electrical & Power, Industrial Manufacturing, Research & Laboratories, Electronics & R&D
