HTC Instruments DFT-821 Coating thickness meter

Name: DFT-821 Coating thickness meter
Brand: HTC Instruments
SKU: DFT655
Price: 5825.00 INR
Availability: OutOfStock

SKU: DFT655

Rs. 5,825.00 MRP ~~Rs. 7,465.00~~ Save Rs. 1,640.00 (22% off) Inclusive of GST-18%

Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

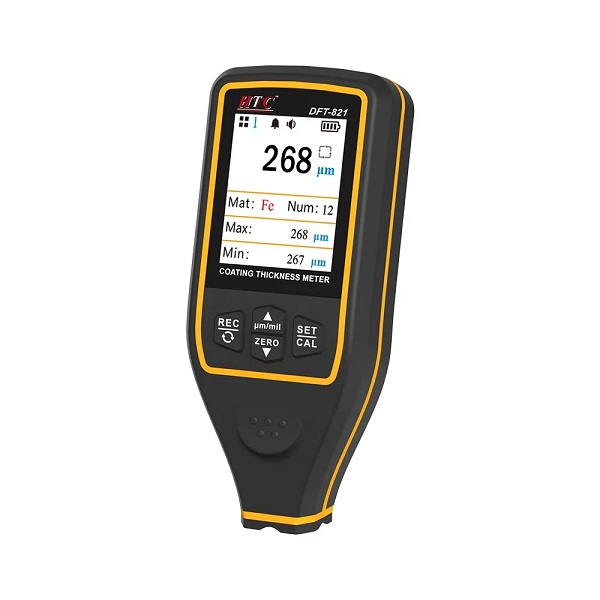

DFT-821 Coating thickness meter

2 Inches Color Screen
Rotatable Screen with four direction
Built-in 850mAh Lithium battery
USB port connecting PC to export data
Voice broadcast
Data grouping, 8 groups and each 32 sets of data
Calibrated data grouping, corresponding to calibrating 8 groups of base-metal
On screen shows directly the thickness of the cover and the material of the base-metal

Product information

Everything you need to know

Measuring range: magnetic material 0~1700um.

: non-magnetic material 0~1700um

Resolution: 0.1um @ (0~99.9 um).

: 1um @ (100~1700 um)

Indication error: +(2+2%*H) um @ (0~500um)

+(2.5%"H) um @ (500~1700 um)

Min measuring area: magnetic material 25x25mm.

: non-magnetic material 25x25mm

Min curvature: convexity 5mm; concave 30mm

Min substrate thickness: magnetic material 0.2mm.

: non-magnetic material 0.05mm

Screen: 2 inches colour screen

Memory: 8 groups and each 32 sets of data

Data Export: USB port connecting PC to export.

Battery specification: 3.7V 850mAh lithium battery

Working temp and humidity: 0°C~50°C, 10%~80%RH

Storage temp and humidity:10°C~60°C, 10%~70%RH

Dimension: 120x52x26mm

Warranty

1 year

Accessories Hard Carry Case, Sling, Iron Substrate, Aluminum Substrate, Calibration Film, Manual.

Automotive Industry, Metal Fabrication & Sheet Metal Industry, Powder Coating Industry, Construction & Structural Steel
