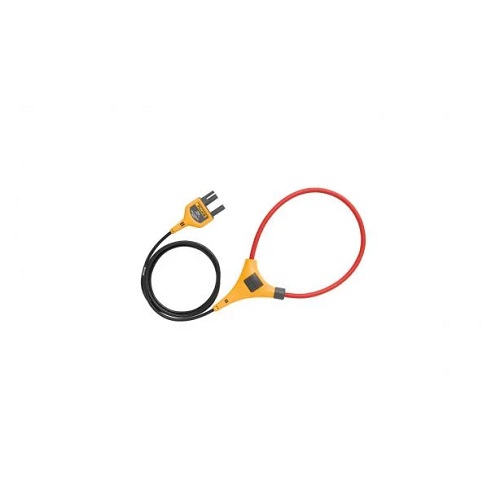

Fluke i2500-18 iFlex® Flexible Current Probes

SKU: I2500B
Rs. 13,450.00 MRP Rs. 15,500.00 Save Rs. 2,050.00 (14% off) Inclusive of GST-18%
In Stock (20 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • Expands the Measurement Range to 2500 A AC while Providing Increased Display Flexibility, Ability to Measure Awkward Sized Conductors and Improved Wire Access
  • CAT IV 600 V, CAT III 1000 V
  • 7.5 mm Coil Diameter Allows Measurement in Tight Spaces
  • Ergonomic Design Allows Easy Operation with One Hand
  • 1.8 m (6 ft) Cable



Product information

Everything you need to know

Technical Specifications



  Range
AC Current1 2500 A
Frequency1 500 Hz
External magnetic field rejection 40 dB
(with cable >10 cm from the coupling)
Inrush1 •
Safety rating CAT III 1000 V, CAT IV 600 V
Position Sensitivity Specifications
Distance from Optimum i2500-18
A 1.4 in (35.6 mm)
B 2.0 in (50.8 mm)
C 2.5 in (63.5 mm)



Warranty
As per brand policy

Application

Industrial uses
