HTC Instruments

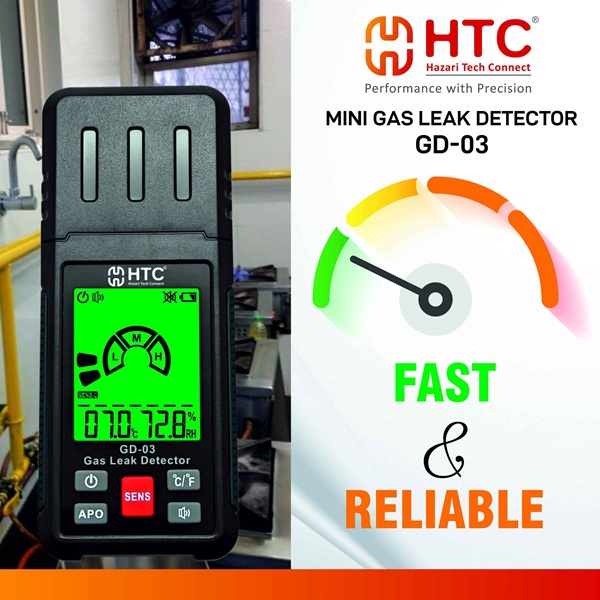

HTC Instruments GD-03 Mini Gas Leak Detector

SKU: GD0003
Rs. 1,695.00 MRP Rs. 2,175.00 Save Rs. 480.00 (23% off) Inclusive of GST-18%
In Stock (2 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

Features



  • Fast & reliable detection of flammable gas leakage
  • High-precision temperature & humidity sensor
  • 3 selectable sensitivity : high / medium / low
  • Buzzer alarm control
  • Backlight change green / orange to red as the signal increases
  • Temperature can be measured in cº / fº
  • Auto power off



Product information

Everything you need to know

Technical Specifications



Basic Function Range Resolution Accuracy
Sensor Type Gas-Sensitive Semi-Conductor
Response Range about 50 PPM~1000 PPM (Methane)
Sensitivity > 50 PPM (Methane)

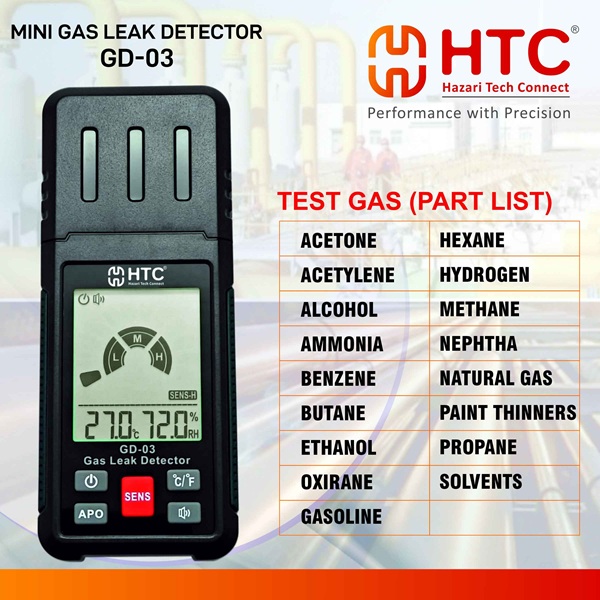

Test Gas Acetone, Acetylene, Alcohol, Ammonia, benzene,
butane, ethanol, oxirane, gasoline, hexane,
hydrogen, methane, naphtha, natural gas,
paint thinners, propane, solvents, etc
Warm up time About 30 Sec
Response Range About 50ppm~1000ppm (Methane)
Temperature ºC -20.0~60.0 C 0.1ºC 0.0 C ~ 45.0 C 1.0 C others ± 1.5 C
ºF -4.0~140.0 F 1ºF 32ºF ~ 113ºF ±2.0ºF others ± 3.0ºF
Humidity 0.0% ~ 99.9 % RH 0.1%RH 20%~80% ±5.0% RH others ± 6.0% RH



Warranty
1 Year- HTC Instrument

What's in the Box

Accessories Soft Carry Case, User Manual & Battery

Application

Industrial uses
