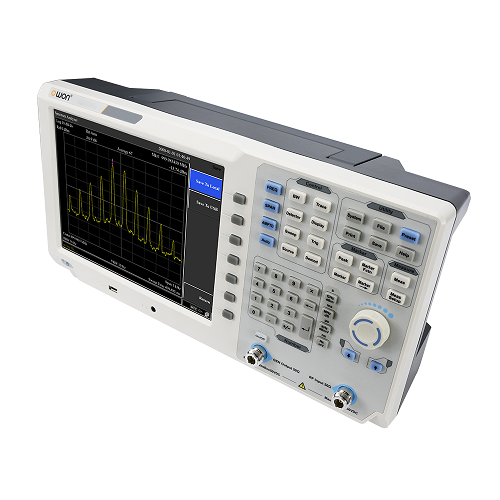

OWON XSA1075TG Spectrum Analyzer

SKU: XSA107
Rs. 550,000.00 MRP Rs. 597,500.00 Save Rs. 47,500.00 (8% off) Inclusive of GST-18%
In Stock (1 available) Dispatch lead time: 3 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • Frequency Range from 9 kHz up to 7.5 GHz
  • 160dBm Displayed Average Noise Level
  • Phase Noise -98dBc/Hz @1Gz and offset at 10KHz
  • Total Amplitude Accuracy <1.5dB
  • 10Hz Minimum Resolution Bandwidth (RBW)
  • EMI Pre-compliance Test Kit, optional EMC test software
  • Standard Pass/Fail on-site test alert ability
  • Up to 7.5 GHz Tracking Generator Kit
  • 10.4 inches display



Product information

Everything you need to know

Technical Specifications



Model XSA1075(TG)
Frequency
Range 9kHz-7.5 GHz
Resolution 1Hz
Frequency span
Range 0 Hz，100 Hz to maximum frequency of device
Accuracy ± span /（swept points -1）
Internal reference
Reference frequency 10.000000 MHz
Reference frequency accuracy ±[（days from last calibrate × freq aging rate）+ temperature stability + initial accuracy ]
Temperature stability <1ppm（15℃ to 35℃）
Aging rate <1ppm/year
Readout
Marker frequency resolution span/（the number of sweep points -1）
Uncertainty ±（freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution）
Frequency counter
Resolution 1 Hz，10 Hz，100 Hz，1 kHz
Accuracy ±（marker freq × freq reference uncertainty + counter resolution）
Bandwidth
Resolution bandwidth (-3 dB) 10Hz to 500kHz（in 1 to 10 sequence）， 1MHz，3MHz
Resolution filter shape factor <5：1 nominal（Digital implement, similar to Gauss Pattern）
Accuracy <5% nominal
Video bandwidth (-3 dB) 10Hz to 3MHz



Warranty
As per brand policy

Application

Industrial uses
