OWON SDS-5032E 30 MHz Digital Storage Oscilloscope (DSO)

SKU: MTQSA6
Rs. 25,323.00 MRP Rs. 28,200.00 Save Rs. 2,877.00 (11% off) Inclusive of GST-18%
In Stock (1 available) Dispatch lead time: 1 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

The OWON SDS5032E 30 MHz Digital Storage Oscilloscope is a compact and feature-rich 30 MHz digital storage oscilloscope designed for versatile signal analysis. With a high-definition 8-inch TFT display, it provides clear visuals for detailed waveform inspection. OWON 30 MHz Digital Storage Oscilloscope SDS5032E oscilloscope offers a sample rate of 250 MS/s and supports dual channels plus an external input, making it suitable for a variety of applications in electronics and engineering.

Key features include a maximum input voltage of 400V (PK-PK), 10 M points of record length per channel, and various trigger modes (Edge, Pulse, Video, Slope). The device also supports advanced functions like waveform math, cursor measurements, and USB connectivity for data storage and transfer. With an ultra-thin design and low power consumption, the OWON 30 MHz Digital Storage Oscilloscope SDS5032E is both portable and efficient. Its combination of performance and user-friendly interface makes it an ideal choice for both professionals and hobbyists in the field.

  • Bandwidth: 30 MHz
  • Sample rate: 250 MS/s
  • 8 inch high definition TFT display
  • Ultra-thin body
  • Channels: 2+1 (External), 30 Mhz



Product information

Everything you need to know

Technical Specifications

- Bandwidth : 30MHz
- Sample rate : 250MS/s
- Horizontal Scale(S/div): 4ns/div~100s/div, step by 1~2~4
- Rise time (at input, typical): ≤14ns
- Channels: 2+1 (External)
- Display: 8" color LCD, TFT display , 800*600 pixels, 65535 colors
- Input impedance: 1MΩ±2%i n parallel with 15pF±5pF
- Channels Isolation: 50Hz: 100 : 1, 10MHz: 40 : 1
- Max. input voltage: 400V (PK-PK) DC + AC PK-PK
- DC gain accuracy: ±3%
- DC accuracy(Average): Average≥16:±(3% reading+0.05div) for ΔV
- Probe attenuation factor: 1X10X100X1000
- LF respond(AC, -3dB): ≥5Hz(at input, AC coupling, -3dB)
- Record length: Max.10M points for each channel
- Sampling rate/relay time accuracy: ±1000ppm
- Interpolation: (sin x)/x
- Interval(ΔT) accuracy (full bandwidth): Single: ±(1 interval time+100ppm×reading+0.6ns) Average>16:±(1 interval time+100ppm×reading+0.4ns)
- Input coupling: DC, AC, GND
- Vertical resolution (A/D): 8 bits resolution (2 Channels simultaneously)
- Vertical sensitivity: 5mV/div,10V/div(at input)
- Trigger type: Edge, Pulse, Video, Slope
- Trigger mode: Auto, Normal, Single
- Trigger level: ±6 divisions from screen center
- Line/field frequency(Video): Support standard NTSCPAL and SECAM broadcast systems
- Cursor measurement: ΔV and ΔT between cursors
- Waveform Math: ×, ÷, FFT
- Waveform storage: 15 waveforms
- Communication interface:USB2.0, USB flash disk storage, LAN VGA (Optional),Pass/Fail
- Power supply: 100V-240V AC, 50/60Hz, CATII
- Power consumption: <18W
- Fuse: 2A, T class, 250V

Warranty
1 Year

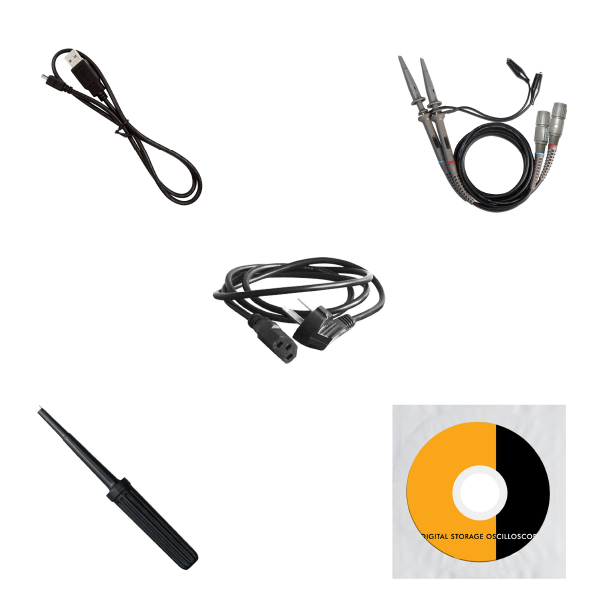

What's in the Box

Accessories Include:

  • Power Cord
  • USB Cable
  • CD Rom
  • Probe
  • Probe Adjust
  • Quick Guide
  • Soft Bag (Optional)



Application

Electronic circuit debugging, Circuit testing, Design and manufacture, Education and training, Automobile maintenance and testing
