HTC Instruments

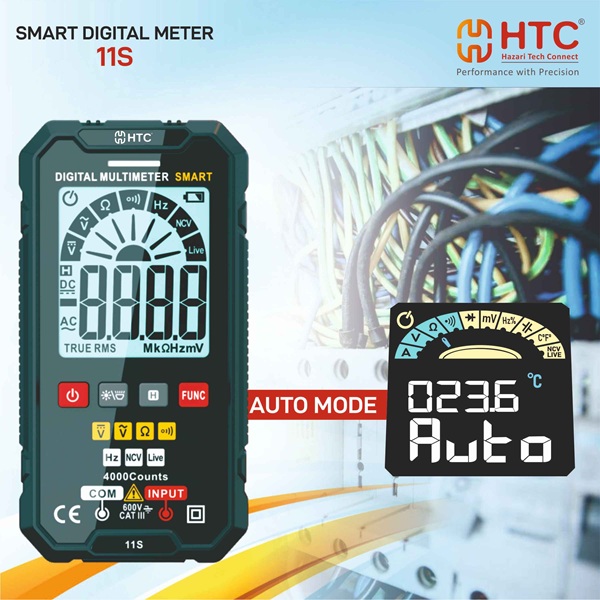

HTC Instruments 11S Smart Multimeter

SKU: 11SMARHTC
Rs. 1,070.00 MRP Rs. 1,249.00 Save Rs. 179.00 (15% off) Inclusive of GST-18%
In Stock (5 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

 Automatic, Autoranging and Intelligent: - This multimeter is very easy to use as compared to a traditional multimeter as it is automatic and intelligent. You don’t have to set parameters beforehand.

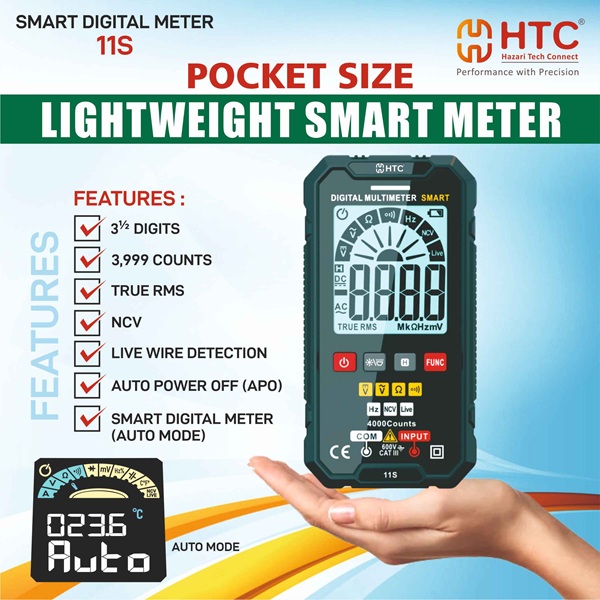

  • 4000 Counts ,True RMS ,NCV & Line
  • Measures AC/DC Voltage, Resistance, Frequency, Continuity
  • 31/2 Digits
  • 3,999 Counts
  • True Rms
  • Ncv
  • Live Wire Detection
  • Auto Power Off (Apo)
  • Smart Digital Meter (Auto Mode)



Product information

Everything you need to know

Technical Specifications

DC VOLTAGE: Range: 400mV, 4V, 40V, 400V,600V; Resolution: 0.1mV,0.001V, 0.01V, 0.1V,1V; Accuracy: ±(0.5% +3) Impedance Approx 10MΩ

AC VOLTAGE: Range: 4V, 40V, 400V,600V; Resolution: 0.001V, 0.01V, 0.1V, 1V; Accuracy: ±(0.8% +3) Impedance Approx 10MΩ Frequency Response 40Hz+1KHz:TRMS

RESISTANCE: Range: 400Ω 4kΩ 40kΩ 400kΩ 4MΩ 40MΩ: Resolution: 0.1Ω 0.001kΩ 0.01kΩ 0.1kΩ 0.001MΩ 0.01MΩ; Accuracy: ±(1.0% +5)

FREQUENCY :Range: 4Hz 40Hz 400Hz 4KHz 40KHz 400KHz 4MHz;Resolution: 0.001Hz 0.01Hz 0.1Hz 0.00KHz 0.01KHz 0.1KHz 0.001MHz; Accuracy: ±(1.0% +5)

Standard Accessories : Test Lead, Manual, Carry Case

Warranty
1 Year

Application

Ideal for hobbyist and Students
