HTC Instruments

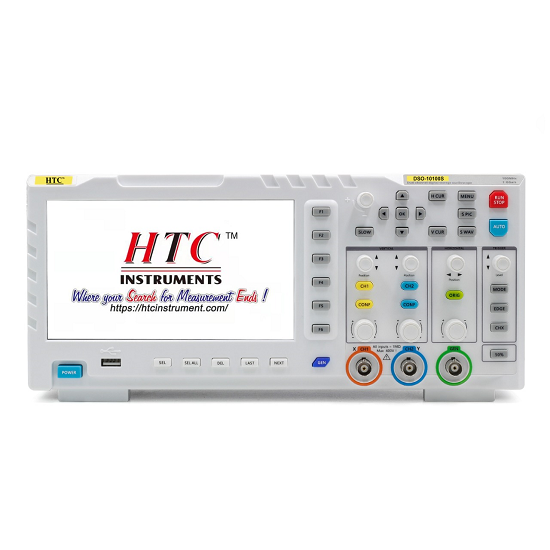

HTC Instruments DSO- 10100S Digital Storage Oscilloscope, 2 Channel 100 Mhz

SKU: HTCSDO10s
Rs. 16,025.00 MRP Rs. 20,545.00 Save Rs. 4,520.00 (23% off) Inclusive of GST-18%
In Stock (4 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

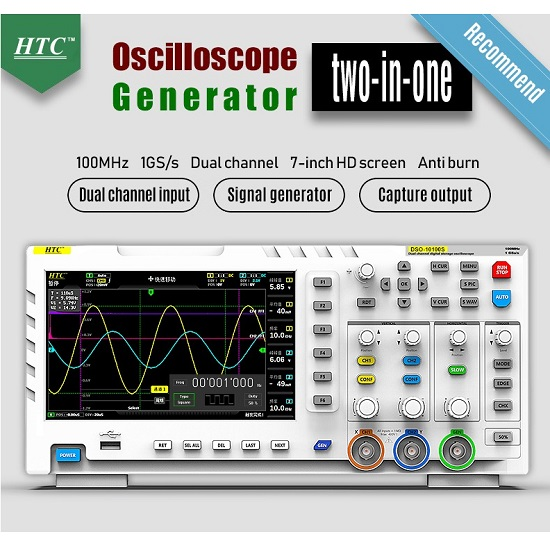

HTC DSO- 10100S Digital Storage Oscilloscope a two in one oscilloscope and signal generator, the real-time sampling rate is 1GSa / s and with 100MHz analog bandwidth, with 7 inch TFT LCD display screen, the built-in high-voltage protection module can tolerate up to 400V continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to 10x gear, built in DDS function signal generator.

  • Built in DDS signal generator, support 12 kinds of function signal..
  • Bandwidth: 100MHz , Number of channels: 2 channels, Maximum real time sampling rate: 1GSa/s
  • Fully fit 7 inch 800 * 480 resolution color TFT LCD
  • High measurement voltage range: 1X can measure 0~40 V, 10X can measure 0~400V.
  • Up to 12 parameters measurement：VPP，VP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Period.
  • Cursor measurement function: it is convenient to manually measure the period and frequency and voltage.
  • Complete triggering function (single, normal, automatic), and at any time, the waveform display (STOP function) is frozen.
  • Equipped with high efficiency One-button AUTO, and one-button waveform storage and screenshot function.
  • Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
  • Equipped with a USB interface



Product information

Everything you need to know

Technical Specifications

Material: ABS

Ana-log bandwidth: 100MHz * 2

Number of channels: 2 channels

Maximum real time sampling rate: 1GSa/s

Vertical sensitivity: 50 mV/div ~ 500 V/div

Horizontal time base range: 50S/div ~ 10nS/div

Maximum test voltage: 40 V (1X probe), 400 V (10X probe)

Input resistance: 1MΩ

Coupling mode: AC/Direct Current

Trigger mode: Single, Normal, Auto

Trigger edge: Rising edge/Falling edge

Extension ports: USB picture export

Package size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in

Package weight: 2500g / 5.5lb

Warranty
1 year

What's in the Box

Accessories   100M Probe*2, USB Charger, User Manual

Application

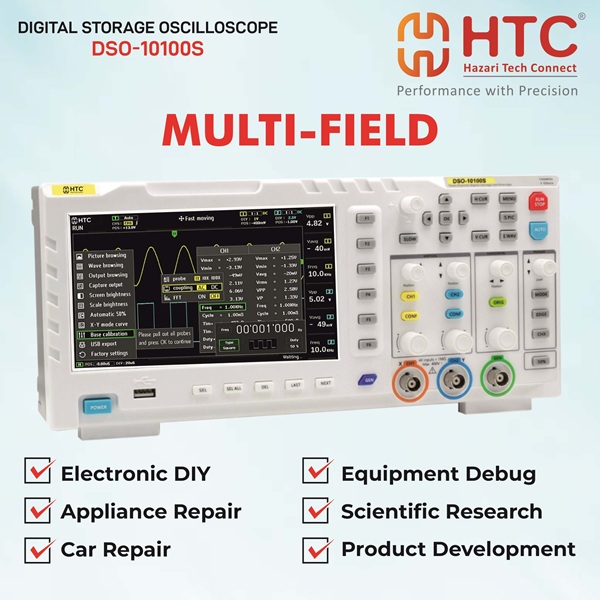

Serial data analysis, jitter analysis, data storage device testing, electric vehicle and electronics equipment design, evaluating frequency response of sound equipment, troubleshooting automotive engines, electronics technician repair and maintenance.
