HTC Instruments

HTC Instruments FG- 100Kg Force Meter

SKU: HTcFG100
Rs. 12,590.00 MRP Rs. 14,278.00 Save Rs. 1,688.00 (12% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

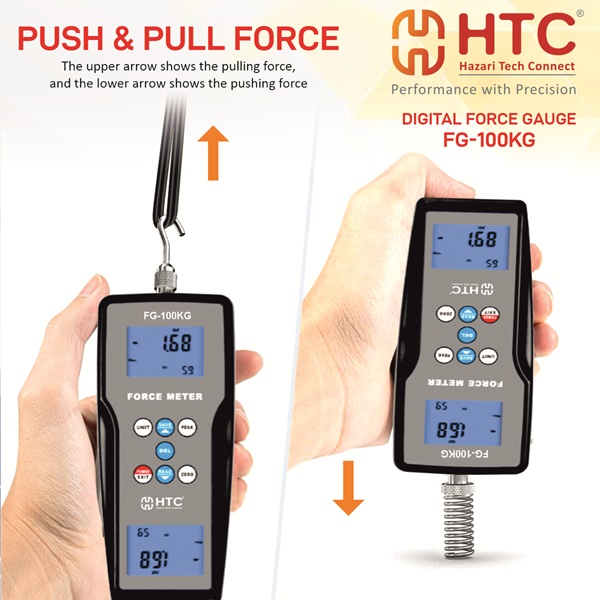

HTC FG- 100Kg Force Meter Gauge

  • Range: ±100kgf, ±980 N, ±220 Lbf
  • Resolution:,0.01 kgf, .1 N.0.1 Lbf
  • High accuracy and high resolution.
  • Digital display with no guessing or errors.

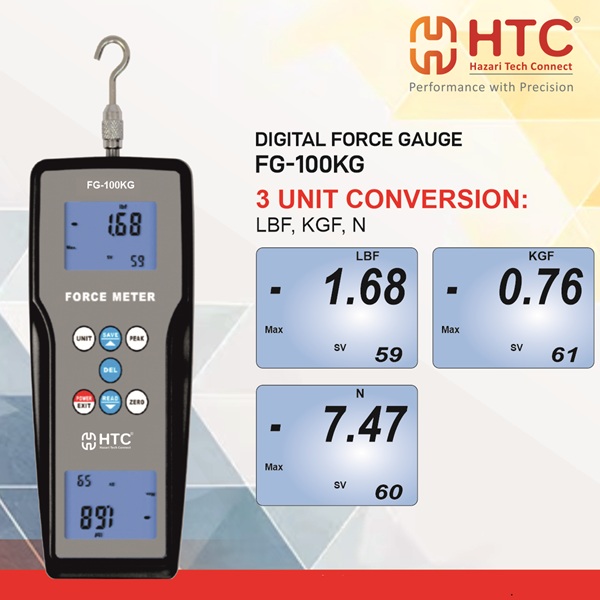

  • With 3 measurement unit for selection and conversion, N, kg, lb.
  • With peak value hold function.
  • With data memory function, can memorize 99 groups of data



Product information

Everything you need to know

Technical Specifications

Range: ±100kgf, ±980 N, ±220 Lbf

Resolution:,0.01 kgf, .1 N.0.1 Lbf

Accuracy:±0.2% FS ±1 Digit

Unit:Kgf, gf, N, Lbf

Measurement State:Peak Value Measurement, Real Time Measurement

Display:2 Reversed 4 Digit LCD

Power Off:10 Mins Auto Power Off, Manual Power Off

Backlight:Blue Backlight

Safe Load:150% FS ( Buzzer Alarm Over 110% FS )

Data Output:USB, Bluetooth

Warranty
1 Year

What's in the Box

Accessories   Digital Force Gauge, Pulling Hook, Flat Tip, Cone Tip, V-shaped groove Tip, V-shaped wedge Tip, Screw Rod, Cap Nut, User Manual, Battery & Hard Carry Case

Application

Industrial use force gauges
