HTC Instruments

HTC Instruments FG- 20Kg Force Meter

SKU: HTcFG20K
Rs. 12,190.00 MRP Rs. 13,825.00 Save Rs. 1,635.00 (12% off) Inclusive of GST-18%
In Stock (9 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

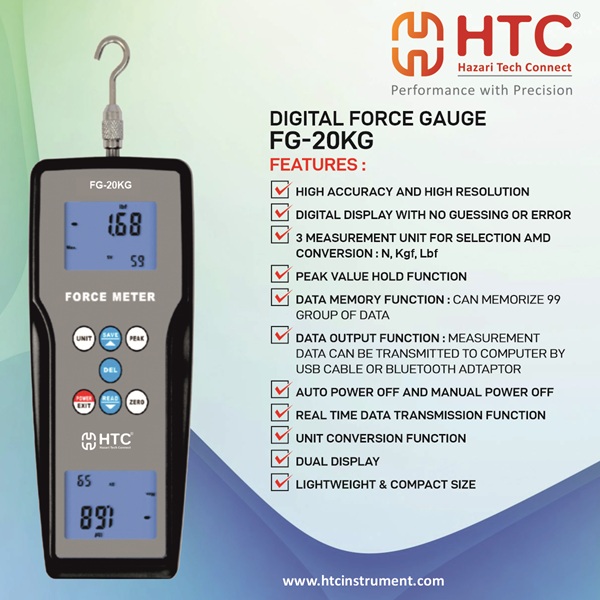

HTC FG- 20Kg Force Meter Gauge

  • Range: ±20kgf, ±196 N, ±44 Lbf
  • Resolution:,0.01 kgf, .1 N.0.01 Lbf
  • High accuracy and high resolution.
  • Digital display with no guessing or errors.

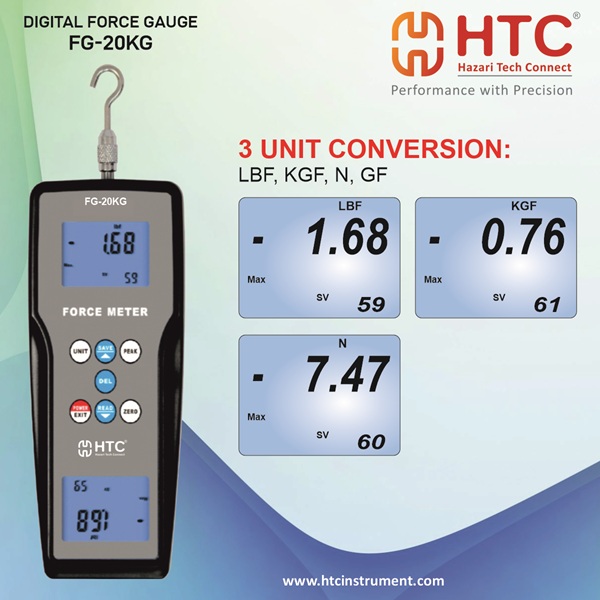

  • With 3 measurement unit for selection and conversion, N, kg, lb.
  • With peak value hold function.
  • With data memory function, can memorize 99 groups of data



Product information

Everything you need to know

Technical Specifications

Range: ±20kgf, ±196 N, ±44 Lbf

Resolution:,0.01 kgf, .1 N.0.01 Lbf

Accuracy:±0.2% FS ±1 Digit

*Unit:Kgf, gf, N, Lbf

*Measurement State:Peak Value Measurement, Real Time Measurement

*Display:2 Reversed 4 Digit LCD

*Power Off:10 Mins Auto Power Off, Manual Power Off

*Backlight:Blue Backlight

*Safe Load:150% FS ( Buzzer Alarm Over 110% FS )

*Data Output:USB, Bluetooth

Warranty
1 Year

What's in the Box

Accessories   Digital Force Gauge, Pulling Hook, Flat Tip, Cone Tip, V-shaped groove Tip, V-shaped wedge Tip, Screw Rod, Cap Nut, User Manual, Battery & Hard Carry Case

Application

Industrial use force gauges
