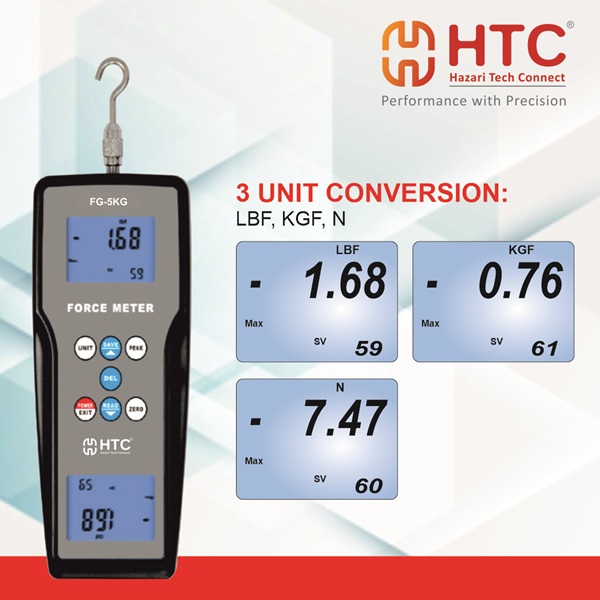

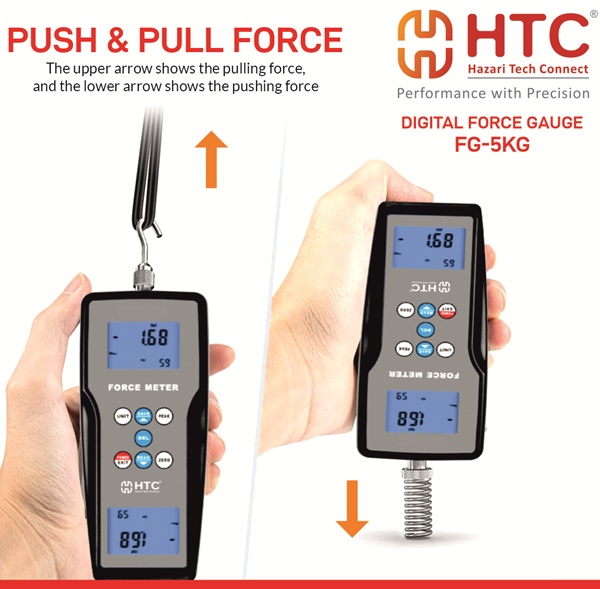

HTC Instruments FG- 5Kg Force Meter

SKU: HTCFG5K

Rs. 11,825.00 MRP ~~Rs. 13,410.00~~ Save Rs. 1,585.00 (12% off) Inclusive of GST-18%

Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

High accuracy and high resolution
Digital display with no guessing or error
4 measurement unit for selection amd conversion : n, kgf, lbf
Peak value hold function
Data memory function : can memorize 99 group of data
Data output function : measurement data can be transmitted to computer by usb cable or bluetooth adtaptor
Auto power off and manual power off
Real time data transmission function
Unit conversion function
Dual display
Lightweight & compact size

Product information

Everything you need to know

Technical Specifications

Range: ±5kgf, ±49 N, ±11 Lbf

Resolution:,0.001 kgf, .01 N.0.01 Lbf

Accuracy:±0.2% FS ±1 Digit

*Unit:Kgf, gf, N, Lbf

*Measurement State:Peak Value Measurement, Real Time Measurement

*Display:2 Reversed 4 Digit LCD

*Power Off:10 Mins Auto Power Off, Manual Power Off

*Backlight:Blue Backlight

*Safe Load:150% FS ( Buzzer Alarm Over 110% FS )

*Data Output:USB, Bluetooth

Warranty

1 Year

What's in the Box

Accessories Digital Force Gauge, Pulling Hook, Flat Tip, Cone Tip, V-shaped groove Tip, V-shaped wedge Tip, Screw Rod, Cap Nut, User Manual, Battery & Hard Carry Case

Application

Industrial use force gauges
